Corn Harvest Chain

Includes a wide variety corn harvesting machine chain, with high ability and stable performance to match different machine. Equip with high quality alloy steel to increase tensile strength and wear resistence ability, and minimize the maintenance cost with superb performance

specification :

Inquiry

press ctrl, and choose what you would like to inquire

Model No	Pitch	Roller Link Width	Roller Outer Diameter	Pin Outer Diameter	Pin Length		Link Plate Height	Link Plate Thickness	Minimum Tensile Strength	Average Tensile Strength	Allowed Load
	P	W min	d1 max	d2 max	L max	Lc max	H max	T/t			max
	mm	mm	mm	mm	mm	mm	mm	mm	kgf	kgf	kgf
CA550HD	41.4	19.9	16.87	8.25	37	40	20.2	3	4800	6000	550
CA550VF2	41.4	19.05	16.8	8.28	36.1	41.1	20.2	3	5609	6030	560
CA557	41.4	20.6	17.8	8	37.4	40.6	22.3	3.2	7000	7850	700
CA620	42.01	24.51	17.91	7.19	41.8	45.2	20.2	3.2	4800	5590	480

proimages/product/1070125/Harvesting___Corn.png

ISO No	ANSI No	Model No	Pitch	Roller Link Width	Roller Outer Diameter	Pin Outer Diameter	Pin Length		Link Plate Height	Link Plate Thickness	Minimum Tensile Strength	Average Tensile Strength	Allowed Load
			p	W min	d1 max	d2 max	L max	Lc max	H max	T/t			max
			mm	mm	mm	mm	mm	mm	mm	mm	kgf	kgf	kgf
C208A	C2040	C2040	25.40	7.85	7.92	3.98	17.80	21.0	12.0	1.5	1420	1950-	280
C208AL	C2042	C2042	25.40	7.85	15.88	3.98	17.80	21.0	12.0	1.5	1420	1950-	280
C210A	C2050	C2050	31.75	9.40	10.16	5.09	21.80	25.0	15.0	2.0	2220	3100	450
C210AL	C2052	C2052	31.75	9.40	19.05	5.09	21.80	25.0	15.0	2.0	2220	3100	450
C212AH	C2060H	C2060H	38.10	12.57	11.91	5.96	30.20	34.80	18.0	3.2	3830	4400	640

proimages/product/1204/03agricultural-chain/Corn_Harvest_Attachments/CornHarvest-Attach-Assembly-19.jpg

ISO Chain No	ANSI Chain No	Model No	Pitch	Link Plate Thickness	Attachment Dimension
			P	T/t	G	H	f1	f2	F	d4	d3
			mm	mm	mm	mm	mm	mm	mm	mm	mm
C208A	C2040	C2040	25.40	1.50	19.10	9.52	11.10	13.50	19.80	3.60	5.20
C208AL	C2042	C2042	25.40	1.50	19.10	9.52	11.10	13.50	19.80	3.60	5.20
C210A	C2050	C2050	31.75	2.00	23.80	11.91	14.25	15.88	24.60	5.20	6.80
C210AL	C2052	C2052	31.75	2.00	23.80	11.91	14.25	15.88	24.60	5.20	6.80
C212AH	C2060H	C2060H	38.10	3.20	28.70	14.27	17.50	19.05	30.60	5.20	8.70

proimages/product/1204/03agricultural-chain/Corn_Harvest_Attachments/CornHarvest-Attach-Assembly-20.jpg

ISO Chain No	ANSI Chain No	Model No	Pitch	Link Plate Thickness	Attachment Dimension
			P	T	G	H	f	F	h	d3
			mm	mm	mm	mm	mm	mm	mm	mm
C208A	C2040	C2040	25.40	1.50	19.10	9.52	25.40	38.40	9.20	3.60
C208AL	C2042	C2042	25.40	1.50	19.10	9.52	25.40	38.40	9.20	5.20
C210A	C2050	C2050	31.75	2.00	23.80	11.91	31.76	47.60	11.10	5.20
C210AL	C2052	C2052	31.75	2.00	23.80	11.91	31.76	47.60	11.10	6.80
C212AH	C2060H	C2060H	38.10	3.20	28.70	14.25	42.90	62.48	14.30	5.20

proimages/product/1204/03agricultural-chain/Corn_Harvest_Attachments/CornHarvest-Attach-Assembly-21.jpg

ISO Chain No	ANSI Chain No	Model No	Pitch	Width	Roller Outer Diameter	Pin Outer Diameter	Pin Length		Link Plate Height	Link Plate Thickness	Hole Diameter
			P	W min	d1 max	d2 max	L max	Lc max	H max	T	D3
			mm	mm	mm	mm	mm	mm	mm	mm	mm
C210A	C2050	C2050	31.75	9.40	10.16	5.09	21.80	25.00	15.00	2.00	“8.00(5.1)”
C210AL	C2052	C2052	31.75	9.40	19.05	5.09	21.80	25.00	15.00	2.00	“8.00(5.1)”

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_01_K1.jpg

Chain No	P	f	F	h	Ød3	T
Chain No	mm	mm	mm	mm	mm	mm
CA550-K1	41.40	54.00	65.00	13.20	8.30	2.70

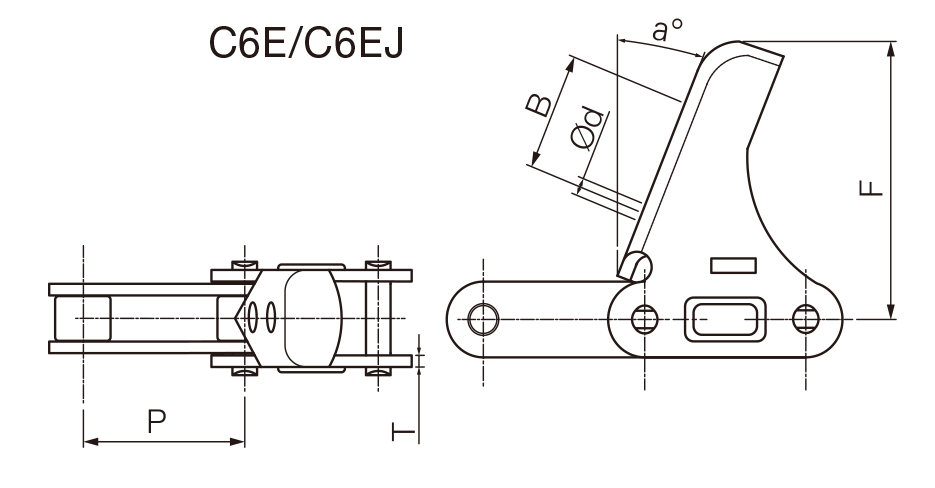

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_02_C6EC6EJ.jpg

Chain No	P	F	B	a*	Ød	T
Chain No	mm	mm/max	mm	°	mm	mm
CA555-C6E	41.40	63.50	25.40	15	6.00	3.20
CA555-C6EJ	41.40	66.10	25.40	15	7.20	3.20

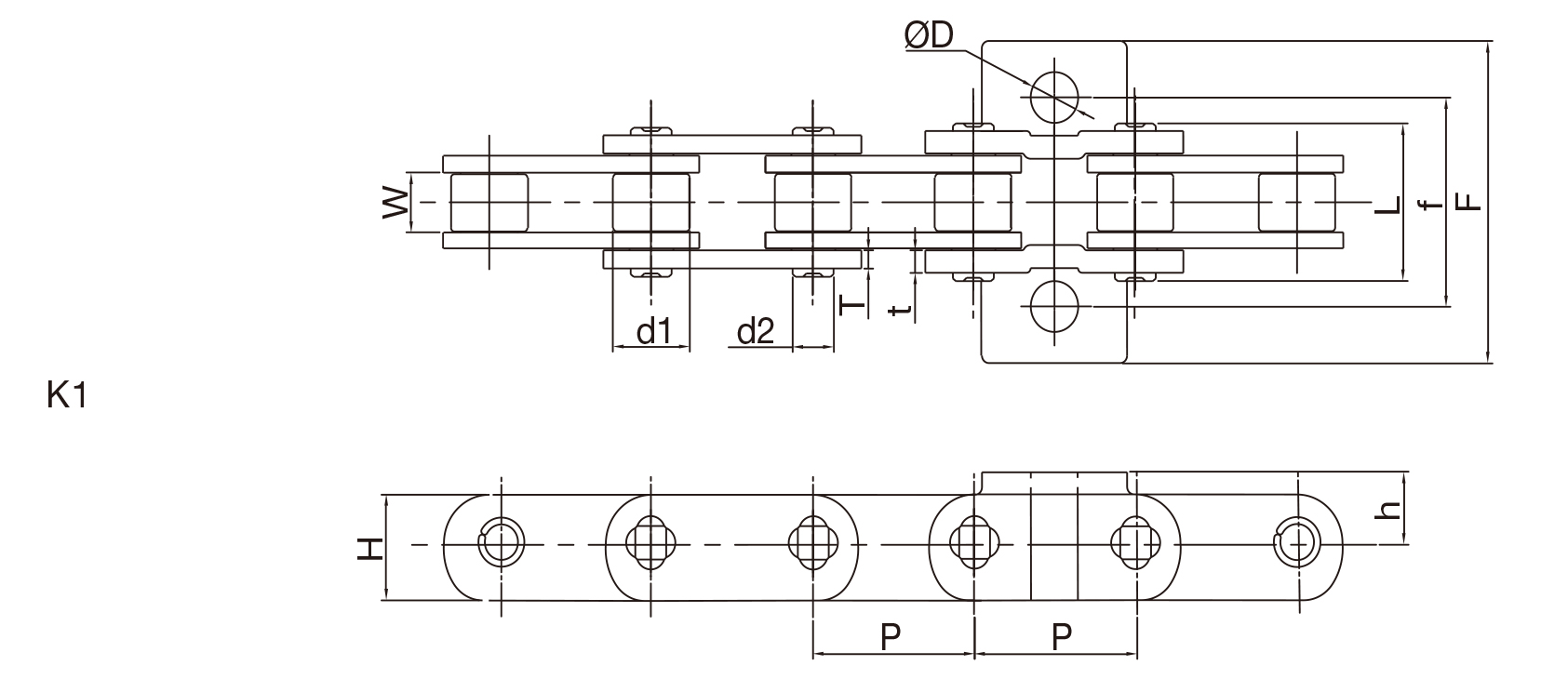

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_03_K1CA557HD.jpg

Chain No

Pitch

Roller Link Width

Roller Outer Diameter

Pin Outer Diameter

Pin Length

Link Plate Height

Link Plate Thickness

Minimum Tensile Strength

Average Tensile Strength

K1 Attachment

W min

d1 max

d2 max

L max

Lc max

H max

min

Ød

kgf

CA557HD-K1

41.40

20.60

17.80

8.00

37.40

40.60

22.30

3.20

5600

7500

10.50

15.10

54.10

79.00

4.70

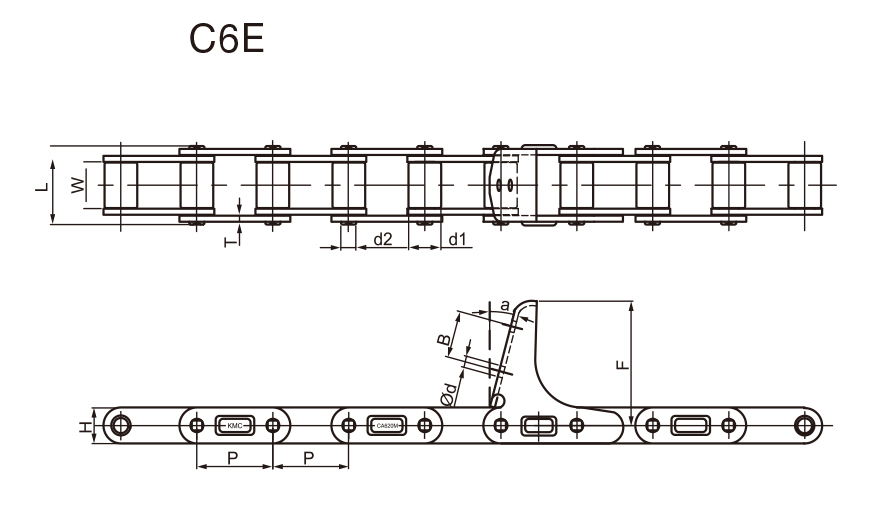

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_04_C6E.jpg

Chain No	P	F	B	a	ØD
Chain No	mm	mm	mm	°	mm
C620MHD-C6E	40.25	66.10	24.00	15	6.00
C620M-C6E	40.25	66.10	24.00	15	6.00

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_05_CPE.jpg

Chain No	Pitch	Roller Link Width	Roller Outer Diameter	Pin Outer Diameter	Pin Length	Link Plate Height	Link Plate Thickness	Minimum Tensile Strength	Average Tensile Strength	CPE Attachment
	P	W min	d1 max	d2 max	L max	H max	T			F	a
	mm	mm	mm	mm	mm	mm	mm	kgf	kgf	mm	°
CA627-CPE	30.00	19.05	15.88	8.28	36.10	20.50	3.00	5100	5610	62.50	22.50

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_06_CPEF7.jpg

Chain No	P	T	H	l	ØD
Chain No	mm	mm	mm	mm	mm
CA627-CPEF7	30.00	3.00	63.00	25.50	6.50

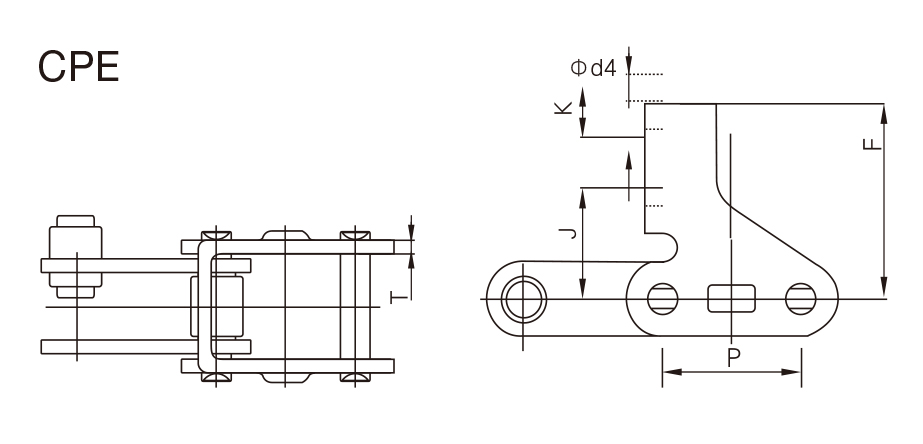

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_07_CPEC2060H.jpg

Chain No	P	K	J	Ød4	T	F
Chain No	mm	mm	mm	mm	mm	mm
C2060H-CPE	38.10	25.40	23.50	5.90	3.20	59.40

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_08_C6ECA555.jpg

Chain No	P	F	B	a*	Ød	T
Chain No	mm	mm/max	mm	˚	mm	mm
CA555-C6E	41.40	63.50	25.40	15	6.00	3.20
C2060H-C6E	38.10	63.50	-	22	-	3.20

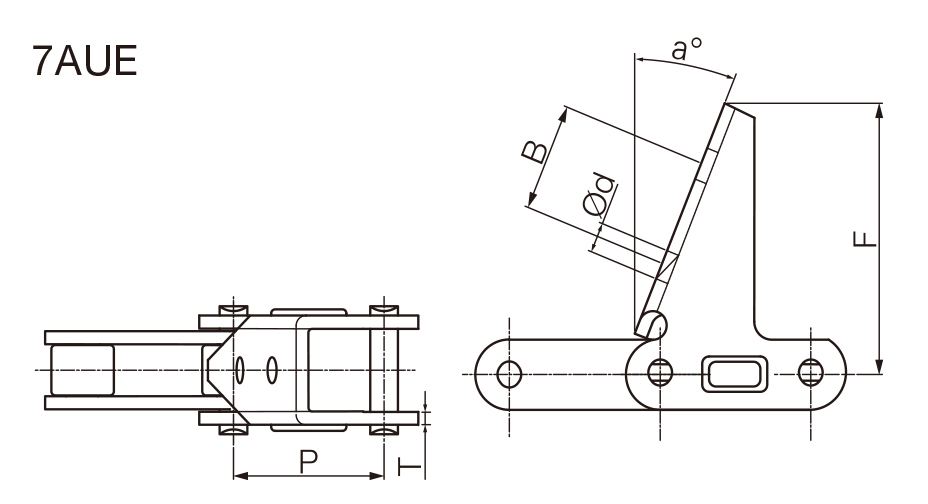

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_09_7AUE.jpg

Chain No	P	F	B	a*	Ød	T
Chain No	mm	mm/max	mm	°	mm	mm
C2060H-7AUE	38.10	63.50	30.00	22	8.50	3.20

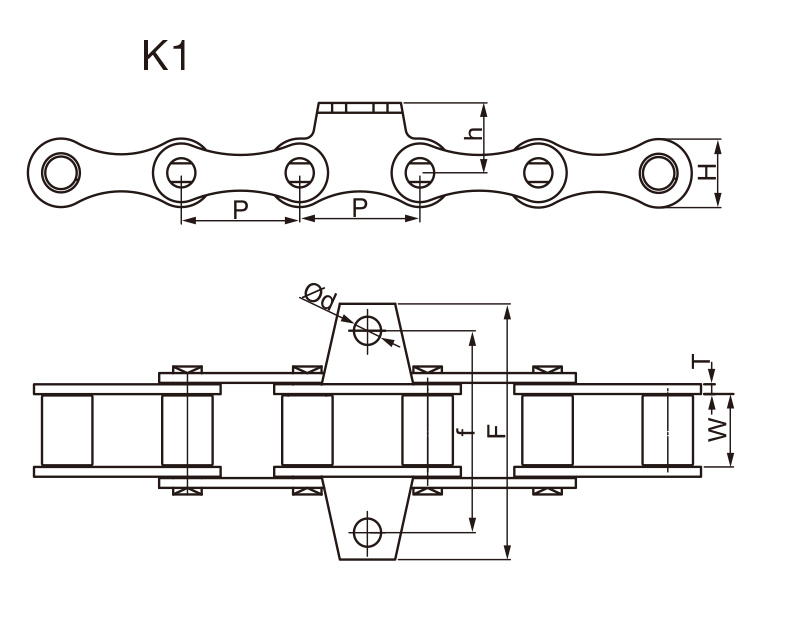

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_10_K1S38.jpg

Chain No	P	T	H(MAX)	W(min)	ØD	h	f	F
Chain No	mm	mm	mm	mm	mm	mm	mm	mm
S38-K1	38.00	3.00	20.90	22.00	8.60	21.00	52.00	78.00

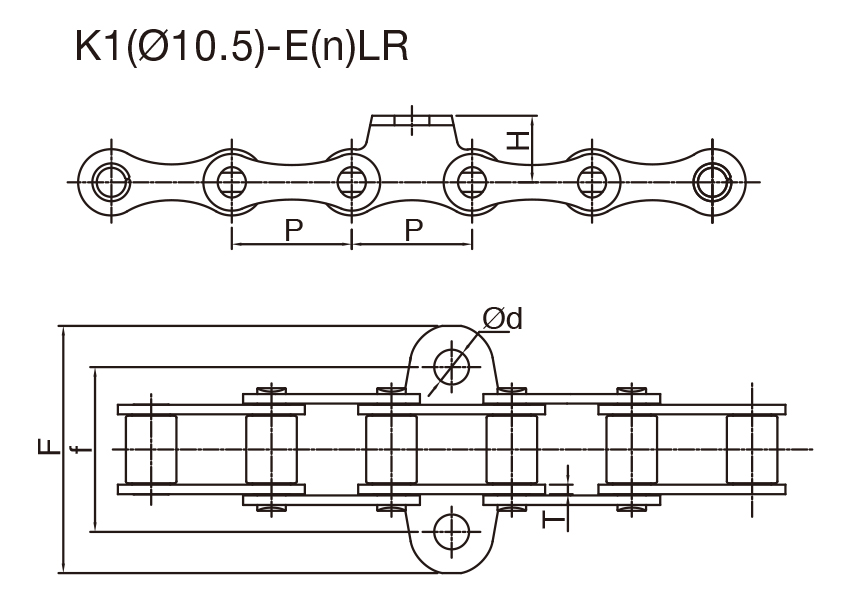

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_11_K1105EnLR.jpg

Chain No	P	T	Ød	H	f	F
Chain No	mm	mm	mm	mm	mm	mm
S38-K1(Ø10.5)-E(n)LR	38.00	3.00	10.50	20.00	52.00	78.00

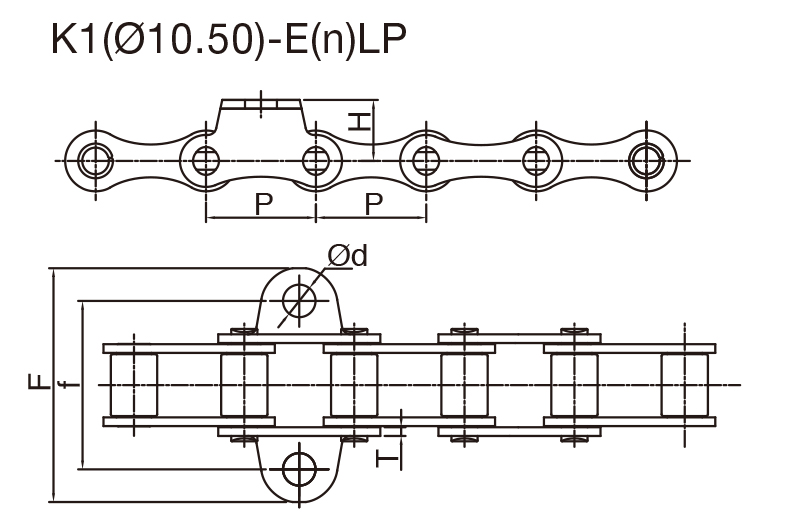

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_12_K1105EnLP.jpg

Chain No	P	T	Ød	H	f	F
Chain No	mm	mm	mm	mm	mm	mm
S38-K1(Ø10.50)-E(n)LP	38.00	3.00	10.50	20.00	58.00	80.50

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_13_C6ES38.jpg

Chain No	P	T	H(MAX)	F	a	ØD	B
Chain No	mm	mm	mm	mm	°	mm	mm
S38-C6E	38.00	3.00	20.90	66.50	15	8.60	19.10

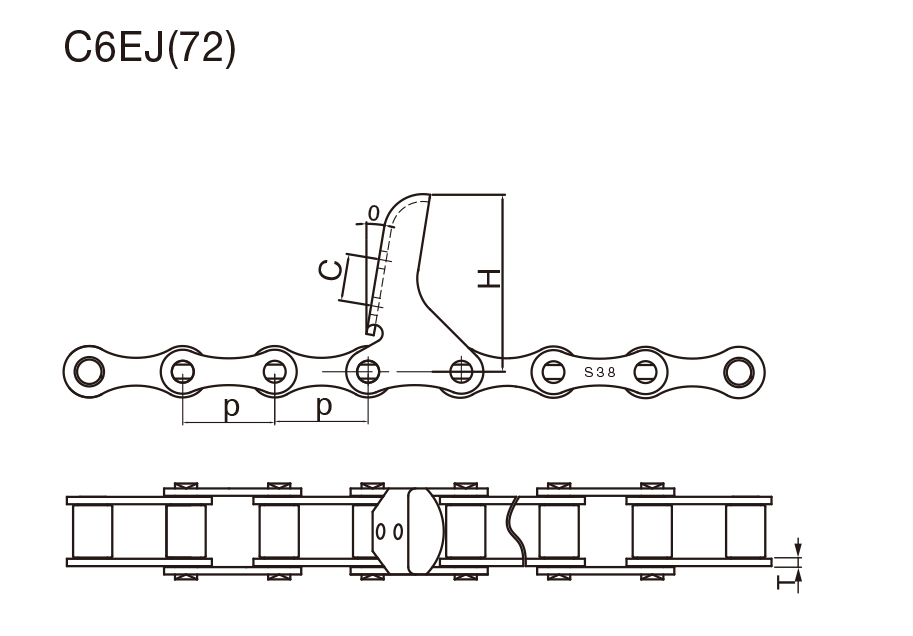

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_14_C6EJ72.jpg

Chain No	P	T	H	o	C
Chain No	mm	mm	mm	°	mm
S38-C6EJ(72)	38.00	3.00	72.00	10	24.00

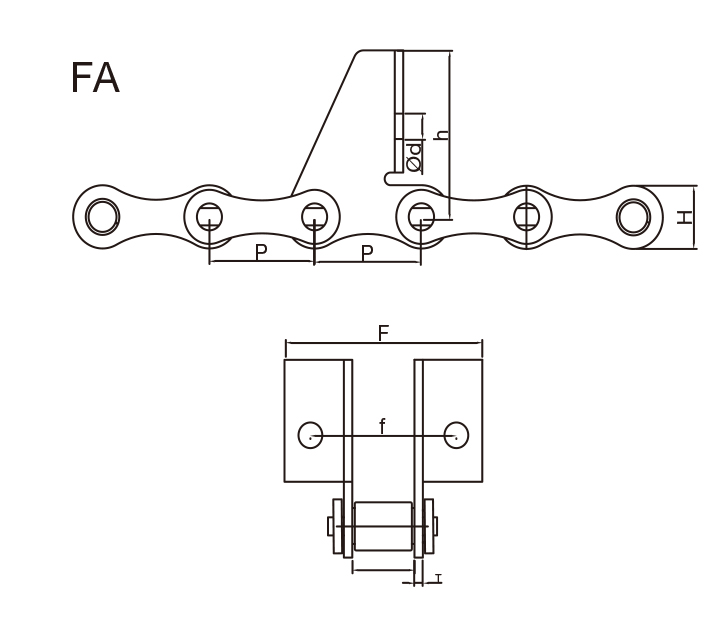

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_15_FA.jpg

Chain No	Pitch	Roller Link Width	Link Plate Height	Link Plate Thickness	F1 Attachment
	P	W min	H max	T	Ød	h	f	F
	mm	mm	mm	mm	mm	mm	mm	mm
S38-FA	30.00	22.00	20.90	22.00	8.60	55.10	52.00	70.60

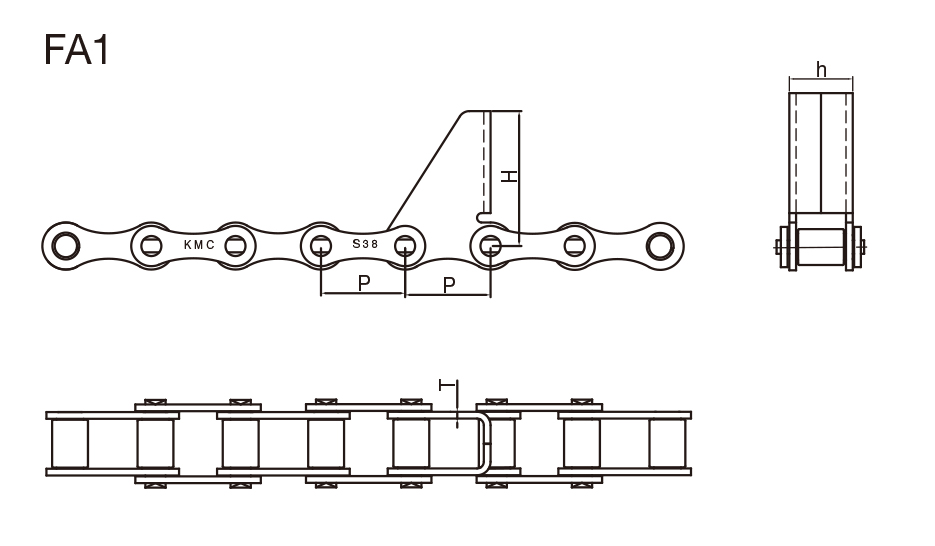

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_16_FA1.jpg

Chain No	P	T	H	h
Chain No	mm	mm	mm	mm
S38-FA1	38.00	3.00	60.00	28.00

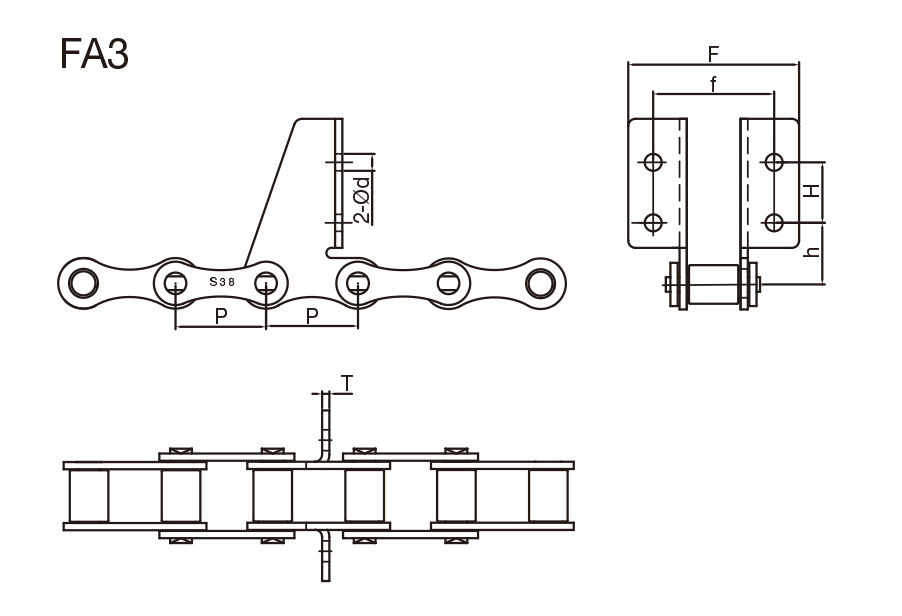

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_17_FA3.jpg

Chain No	P	T	ØD	h	H	f	F
Chain No	mm	mm	mm	mm	mm	mm	mm
S38-FA3	38.00	3.00	7.00	25.00	25.00	50.00	70.60

proimages/product/01chain/03agricultural-chain/Corn_Harvest_Attachments/Corn_Harvest_Attachments_18_FA4.jpg

Chain No	P	T	ØD	h	H	f	F
Chain No	mm	mm	mm	mm	mm	mm	mm
S38-FA4	38.00	3.00	7.00	32.00	25.00	52.00	70.60
